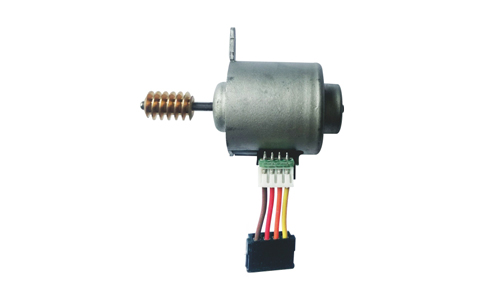

9.01.03.001.001.01

Excitation Method：Bipolar Constant Current Driving

Nominal Current/Phase(IN)：350mA（Whole step）,360mA（1/4FS）

Phase Quantity：2 Phase

Stepping Angle：18o

Resistance per Coil：12.3±7%Ω

Phase Inductivity：10.7±15%mH

Axial Movement：0.25-0.4mm

Torque：≥6.5mN.m

Drawing Force Resistance of fixing plate：300N Max

Sound Level：0.25m,≤50dB,Rated torque，Rated load

Nominal Frequency：200Hz(Whole step）

Operating Frequency Range：100Hz~500Hz

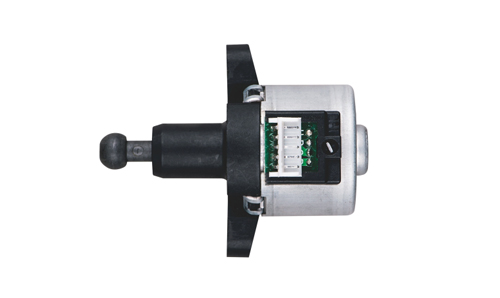

9.51.01.001.001.01

Excitation Method：Bipolar Constant Current Driving

Nominal Current/Phase(IN)：500mA

Phase Quantity：2 Phase

Stepping Angle：15o

Linear Travel per Full Step：1/30mm

Resistance per Coil：7.9±0.6Ω

Phase Inductivity：8±15%mH(1000Hz)

Stoke：12.5±0.15mm

Delivery Position：30±0.3mm

Axial Play of The Shaft：≤0.2mm

Push-pull Force：（Homoiothermy:≥40N）Tmin/Tmax:≥30N

Maximum Axial Installation Force：500N max

Sound Level：0.25m,≤50dB,15N

Nominal Frequency：300pps（Whole step）,600pps（1/2step）

9.01.01.001.001.01

Excitation Method：Bipolar Constant Current Driving

Nominal Current/Phase(IN)：500mA

Phase Quantity：2 Phase

Stepping Angle：15o

Resistance per Coil：7.9±0.6Ω

Phase Inductivity：8±15%mH(1000Hz)

Axial Play of The Shaft：≤0.1mm,15N

Torque：25mN.m

Maximum Static Axial Force：500N Max

Sound Level：0.25m,≤60dB

Nominal Frequency：300pps（Whole step）,600pps（1/2step）

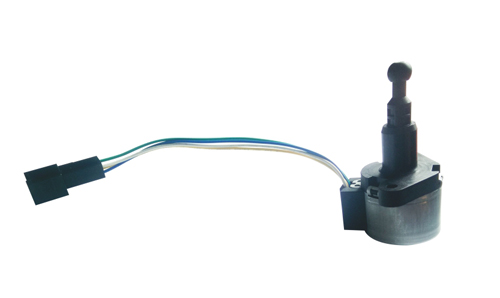

9.51.01.009.001.01

Excitation Method：Bipolar Constant Current Driving

Nominal Current/Phase(IN)：500mA

Phase Quantity：2 Phase

Stepping Angle：15o

Linear Travel per Full Step：1/30mm

Stoke：7.4±0.2mm

Delivery Position：35.5±0.3mm

Axial Play of The Shaft：≤0.2mm

Push-pull Force：（Homoiothermy:≥60N）Tmin/Tmax:≥30N

Maximum Axial Installation Force：500N max

Sound Level：0.25m,≤50dB,15N

Nominal Frequency：300pps（Whole step），600pps（1/2step）

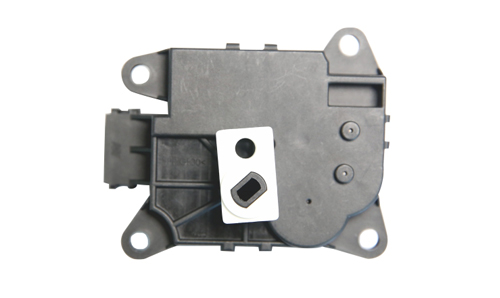

JH080100101

Power supply：DC12V (DC8V-DC16V)/DC24(16V-DC30V)

Power consumption：0.84W

Current：Max.70mA

Electrical  connection：Max.1mX0.5mm²

Direction of rotation：CW/CCW

Angle of fotation：81o/79o/136o/180o/105o(adjustable）

Torque：40N.cm

Speed at test torque：6.0±1.5rpm

Load current ：≤200mA

Stall torque：≥90N.cm

Current at stall motor：≤500mA

Noise with load： ≤36dB(100mm)

Noise with load： ≤42dB

Connector model：Molex SD-98193-004

Cycle life：200000Cycels

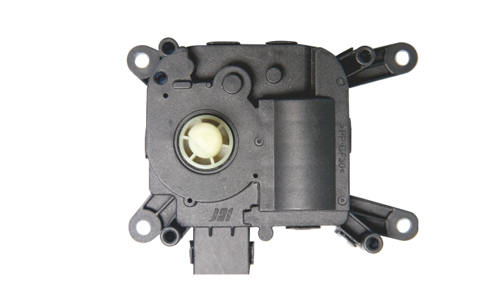

JH080100201

Power supply：DC12V (DC8V-DC16V)/DC24(16V-DC30V)

Power consumption：0.84W

Current：Max.70mA

Electrical  connection：Max.1mX0.5mm²

Direction of rotation：CW/CCW

Angle of fotation：79o(adjustable）

Torque：40N.cm

Speed at test torque：6.0±1.5rpm

Load current：≤200mA

Stall torque：≥90N.cm

Current at stall motor：≤500mA

Noise with load： ≤36dB(100mm)

Noise with load： ≤42dB

Connector model：Molex SD-98193-004

Cycle life ：200000Cycels

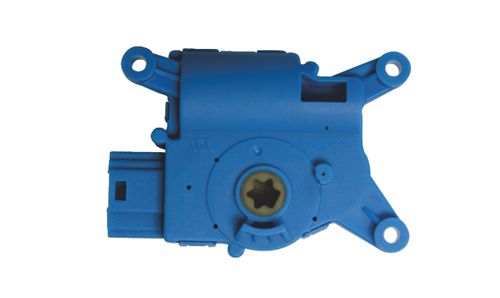

JH080200101

Power supply：DC12V (DC8V-DC16V)/DC24(16V-DC30V)

Power consumption：0.84W

Current：Max.70mA

Electrical  connection：Max.1mX0.5mm²

Direction of rotation：CW/CCW

Angle of fotation：98o(adjustable）

Torque：40N.cm

Speed at test torque：3.5±1rpm

Load current：≤200mA

Stall torque：≥90N.cm

Current at stall motor：≤500mA

Noise with load： ≤36dB(100mm)

Noise with load： ≤42dB

Connector model  ：sheath:0402901   terminal:0102503

Cycle life ：200000Cycels

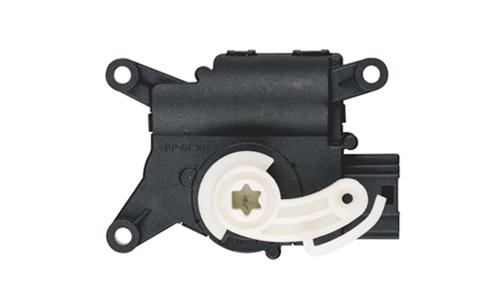

JH080200201

Power supply：DC12V (DC8V-DC16V)/DC24(16V-DC30V)

Power consumption：0.84W

Current：Max.70mA

Electrical connection：Max.1mX0.5mm²

Direction of rotation：CW/CCW

Angle of fotation：90o(adjustable）

Torque：40N.cm

Speed at test torque：3.5±1rpm

Load current：≤200mA

Stall torque：≥90N.cm

Current at stall motor：≤500mA

Noise with load： ≤36dB(100mm)

Noise with load： ≤42dB

Connector model：sheath:0402901   terminal:0102503

Cycle life：200000Cycels

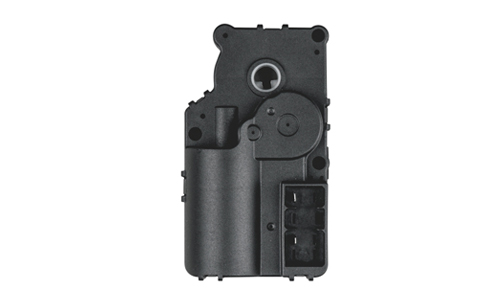

JH080600301

Power supply：DC12V (DC8V-DC16V-DC30V)

Power consumption：0.84W

Current：Max.50mA

Electrical  connection：Max.1mX0.5mm²

Direction of rotation：CW/CCW

Angle of fotation：105o(可調整/adjustable）

Torque：40N.cm

Speed at test torque：3.4±0.6rpm

Load current：≤200mA

Stall torque：≥90N.cm

Current at stall motor：≤500mA

Noise with load： ≤38dB

Noise with load ： ≤45dB(100mm)

Connector model：sheath:TKD05MW   terminal:6619253

Cycle life：500000Cycels

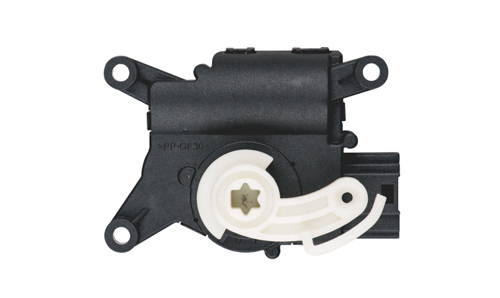

JH080300301

Power supply：DC12V

Power consumption：0.84W

Current：Max.50mA

Electrical  connection：Max.1mX0.5mm²

Direction of rotation：CW/CCW

Angle of fotation：152o(adjustable）

Torque：40N.cm

Speed at test torque：4.5±1rpm

Load current：≤200mA

Stall torque：≥90N.cm

Current at stall motor：≤400mA

Noise with load： ≤38dB

Noise with load： ≤45dB(100mm)

Connector model：sheath:TKD05MW   terminal:6619253

Cycle life：200000Cycels

JH080100701

Power supply：DC12V (DC8V-DC16V)/DC24(16V-DC30V)

Power consumption：0.84W

Current：Max.50mA

Electrical connection：Max.1mX0.5mm²

Direction of rotation：CW/CCW

Angle of fotation：203o(adjustable）

Torque：40N.cm

Speed at test  torque：4.5±1rpm

Load current：≤200mA

Stall torque：≥90N.cm

Current at stall motor：≤400mA

Noise with load： ≤36dB

Noise with load： ≤45dB(100mm)

Connector model：Molex SD-98193-004

Cycle life：200000Cycels

JH080700101

Power supply：DC12V (DC8V-DC16V-DC30V)

Power consumption：0.84W

Current：Max.50mA

Electrical  connection：Max.1mX0.5mm²

Direction of rotation：CW/CCW

Angle of fotation：149o(adjustable）

Torque：40N.cm

Speed at test torque：4.5±1rpm

Load current：≤200mA

Stall torque：≥90N.cm

Current at stall motor：≤400mA

Noise with load： ≤38dB

Noise with load：≤45dB（100mm）

Connector  model：sheath:TKD05MW   terminal:6619253

Cycle life：200000Cycels
